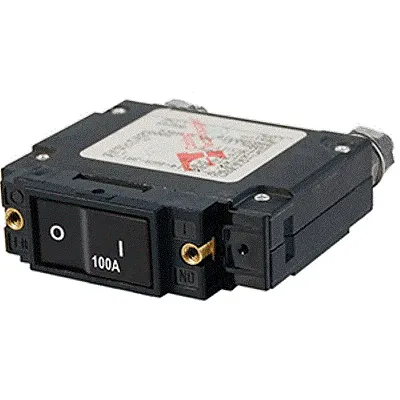

Blue Sea 7549 C-Series Flat Rocker Circuit Breaker - Single Pole
| Price: |
$43.20 |
| Manufacturer: |
Blue Sea Systems
|
| Model: |
7549 |
| SKU: |
65289-CW |
| UPC: |
632085075491 |
| Condition: |
New |
| Availability: |
In Stock |
|
Ready to ship in 1 business day |
C-Series Flat Rocker Circuit Breaker - Single Pole - 100AFeatures:- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
- Ignition protectedsafe for installation aboard gasoline powered boats
Specifications:- Amperage: 100A AC / 100A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 240V AC / 48V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Weight: 0.38lb (0.17 kg)
