Hard-Wired 24VDC Audio + Visual Doorbell System Kit HW-LDHSK2

Designed for apartments & hotel rooms, this hard-wired 24-volt DC doorbell notification kit comes with everything you need to alert Deaf & hard of hearing people to someone at the door.

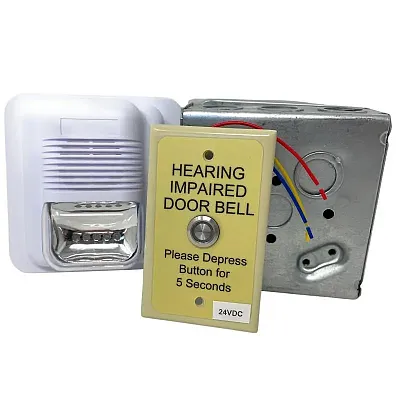

Includes

• (1) single gang backlit doorbell push button with mounting plate
• (1) combination horn/strobe
• (1) power supply

Features

• Doorbell push button includes a white backlight, making it more noticeable & easier to locate
• Choose between 5 different strobe colors & 5 different audible tone options
• SW1 rotary dial controls the strobe (Off, Amber/Yellow, Clear/White, Green, Blue, Red)
• SW2 rotary dial controls the sound (Off, Chime Continuous, Chime Temporal, Horn Continuous, Horn Temporal, Doorbell/Ding Dong)
• Expandable – the switching power supply can power up to 5 additional horn/strobes for alerting in multiple rooms
• The notification mounting bracket can be mounted universally to single gang, double gang, 4 square, and many more boxes.

Specifications

• Notification appliances meet ANSI/UL 464, ANSI/UL 1971, and UL 1638.
• 24VDC power supply rated for 1.0A, 110/220VAC input, =/- 15%
• Power supply includes an enclosure and has an operating temperature range of -20 ~ +70°C
• Doorbell is mounted on a single gang SS plate with flying leads on the back
• Input terminals accept 14 to 18 AWG wire
• Nominal voltage 24VDC
• Unit Dimensions: 5” (12.7 cm) high x 5.0” (12.7 cm) wide x 2.0” (5.08 cm) deep
• Product compliance with NFPA 72, IBC/IFC/IRC
