Poly-Planar 4Ch, 120W, Audio Amplifier W/Volume Control

4 Channel,120watt, Audio Amplifier with volume control
Part Number: ME60

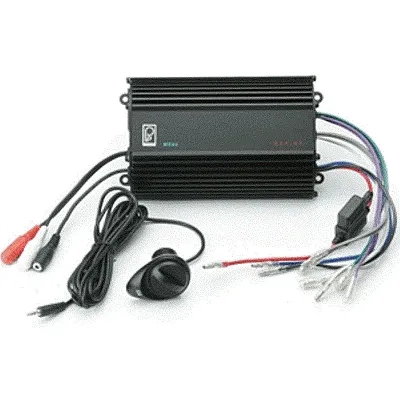

The ME60 is a four channel 120 Watts RMS audio amplifier of delivering up to 30W RMS per channel. It has a compact, water resistant design that allows for flexible mounting possibilities, and makes it simple to expand the audio system capabilities for any installation.

Uses:

• To add additional loudspeakers to a current audio system

• To provide amplification for a separate audio zone

• As a stand-alone system amplifier for any audio source

• To power standard speakers or speakers and subwoofer

Features

• Powers up to (8) 4ohm speakers

• Internal distortion limiting circuits

• Dedicated gain level control

• External volume control with ON/OFF switch included

• Water resistant design for marine use

• Rear channels switchable from full range to powered sub out.

Specifications

• Speaker Impedance: 2-8 ohm

• Output Power (4 ohm load) 20 Watts RMS per Channel (50W Peak): (2 ohm load) 30 Watts RMS per Channel (70W Peak)

• Frequency Response: 20Hz-40kHz

• Low Pass Crossover: 18 - 245 Hz

• Operating Voltage: 13.8V DC (10V-16V)

• Maximum Current Draw (full power): 8-10amps

• Dimensions (approx. w x h x d): 175mm x 115mm x 35mm 6.9" x 4.5" x 1.4"

• Installation Clearance: 250mm free space top/sides

• Weight: 1.65lbs

• Volume Control Cable Length: 290cm/114"
