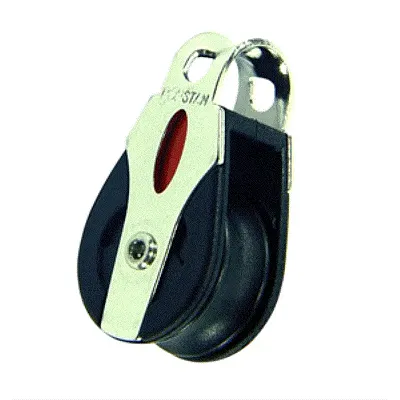

Ronstan Series 20 Ball Bearing Block - Single - Loop Top

Series 20 Ball Bearing Block - Single - Loop Top

Features:

• Low friction

• High static and dynamic load capacity

• Lightweight

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

• Can be fitted with a shackle in either of two planes to allow correct alignment of the block

Applications:

• Dinghy control lines

• Dinghy Vangs

• Cunninghams

• Traveller controls

Materials:

• U.V. Stabilized Acetal sheaves

• Stainless steel ball bearings

• Grade 316 stainless steel load strap and head fitting

• Impact and UV resistant, fiber reinforced Nylon cheeks

=Specifications:
Sheave Ø:20mm(3/4")
Max. Rope Ø:6mm(1/4")
M.W.L.:250kg(550lbs)
B. L.:550kg(1,210lbs)
Weight:16g(0.6oz)
