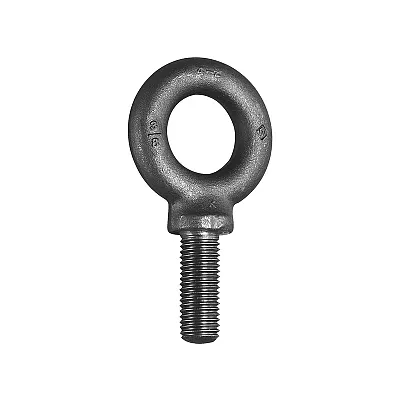

Williams 3/8??? Shoulder Eye Bolt

Williams 3/8? Shoulder Eye Bolt

Shank Size: 3/8?
Threads Per Inch: 16
UNC Class 2A thread

Vertical Capacity: 1,300 lbs.
Ultimate Strength: 6,500 lbs.

Angular Loading Rated Capacity:
0° = 1,080 lbs.
30° = 335 lbs.
60° = 185 lbs.
90° = 150 lbs.

Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
Each lot is tested and inspected to insure conformance to specifications
Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially. A steel washer or spacer may be required for proper seating
To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable. Tightness and seating must be checked after initial load
